In addition to the basic weaving structure, it can be knited of multiple colors and irregular complicated jacquards, twisted flowers, pick holes, and tuck in the same line. The four system has the most highest efficiency.

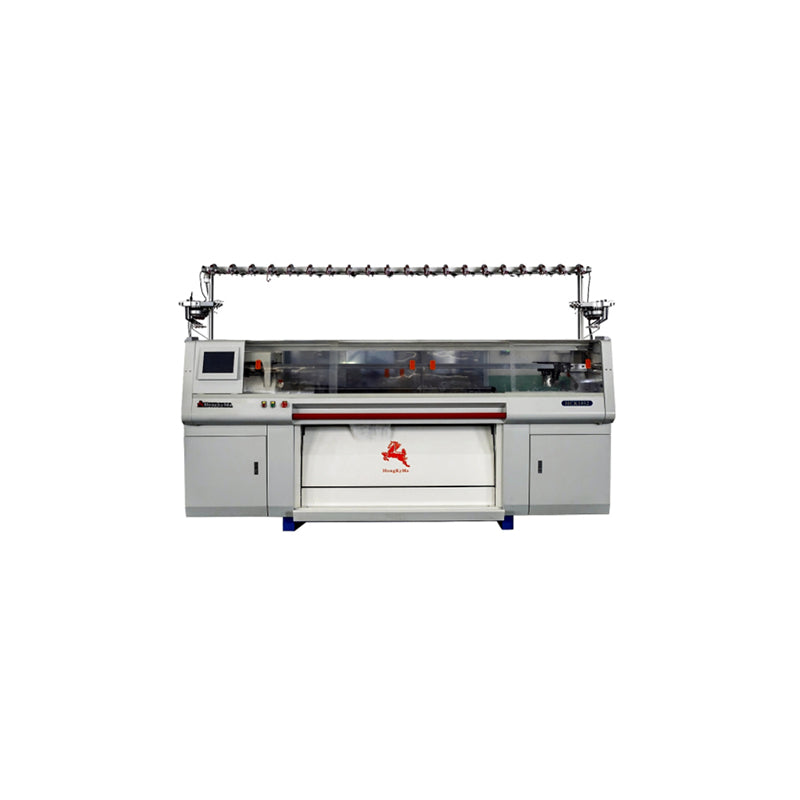

HCK FOUR SYSTEM COMPUTERIZED FLAT KNITTING MACHINE

MODEL: HCK1052/HCK1052S
GUAGE: 3/5/7G MULTI GAUGE(7V),7G,9G,10G,12G,14G,16G,18G
KNITTING WIDTH: 36/52/60/72 INCH
KNITTING SPEED: CONTROLLED BY AC SERVO MOTOR WITH 36 SECTION SPEED OPTIONAL, MAX SPEED IS 1.8M/S
KNITTING SYSTEM: SINGLE/DOUBLE CARRIAGE WITH FOUR SYSTEM
OPTIONAL ZERO FINISHING
RACKING: CONTROLLED BY AC SERVO MOTOR RACKING WITHIN 2 INCHES AND WITH FINE ADJUSTING FUNCTION, DOUBLE RACKING
TRANSFER NEEDLE: SPECIAL CARRIAGE CAM DESIGN, SINGLE OR DOUBLE SYSTEM CAN TRANSFER INDEPENDENTLY OR SIMULTANEOUSLY OR ONE SYSTEM TRANSFER WHILE THE OTHER SYSTEM KEEPS KNITTING, TO ACHIEVE HIGH PRODUCTION EFFICIENCY
SINKER SYSTEM: CONTROLLED BY STEPPING MOTOR, ADJUSTABLE TO DIFFERENT KNITWARE, HAVE VARIOUS RESULT OF SHAPING AND INCREASING NEEDLE
TAKEDOWN SYSTEM: PROGRAMMED INSTRUCTION, CONTROLLED BY MARCHING MOTOR, CHANGEABLE 36 LEVELS AND SELECTABLE, SCOPE: 0-100
YARN CARRIER: 2X8 YARN CARRIERS ON EACH SIDE OF 4 GUIDE RAILS, SHIFT ON ANY NEEDLE POSITION (SPECIAL INTARSIA CARRIERS AVAILABLE)
PROTECTION SYSTEM: THE MACHINE WILL AUTOMATICALLY ALARM AT YARN BROKEN, KNOTS, FLOATING YARN, REWINDING, END OF KNITTING PIECE, FAIL RACKIN, NEEDLE FOOT BROKEN, PROGRAMMING ERROR ETC.
SCREEN: ADOPT LED TOUCH DISPLAY AND FIGURED INTERFACE, INPUT DEVICE: USB. INTERNAL STORAGE UP TO 2G. A GREAT AMOUNT OF DESIGN FILES CAN BE STORED AT THE SAME TIME AND THEY CAN BE READ OUT FOR USE AT ANY TIME AS PER PRODUCTION REQUIREMENTS
MONITORING MENU: EACH KIND OF OPERATING PARAMETER CAN BE SHOWN, AND THEY CAN BE ADJUSTED AT ANY TIME WHEN THE MACHINE IS RUNNING, MAKING CONVENIERCES FOR OPERATIONS AS MUCH AS POSSIBLE
POWER SUPPLY: AC 220V/50HZ, ADOPTS ADVANCED CMOS TECHNOLOGY, HAVING MEMORIZING FUNCTION, AT POWER-OFF MOMENT, POWER ABOUT: 800W
SIZE AND WEIGHT: VOLUME: L2690 X W950X H2010MM NET WEIGHT: 1000KG; GROSS WEIGHT: 1050KG
